Nombre

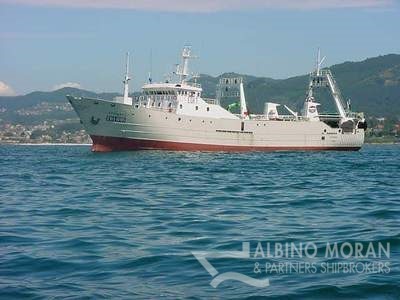

COTOBAD
Tipo
FACTORY FREEZING STERN TRAWLER
Año Construcción
95
Clase
Lloyd´s Register + 100 A1 Stern Trawler Deep Sea + LMC + RMC + ICE Class 1D
Tonelaje
1558 GT / 467 NT
Dimensiones
68 x 12.5 M
Acomodación
60 crew adapted to Namibian requirements .
Capacidad de Bodega
1452 CBM
Motor Principal
BARRERAS-DEUTZ 2400 CV
Propulsor
KAMEWA-BALIÑO CPP in nozzle, 3.500 mm diam. 4 blades
Sistema Frigorífico
80 ts/day ■ 6 Freezing tunnels with 156 trays with freezing capacity of 60 ts/day ■ 3 ATLANTICA Horizontal pate freezers, 13 stations, freezing capacity of 20 ts/day.( a new one in 2011) ■ 3 Screw Compressors MYCOM 160 LUD-HE moved by electrical motors INDAR A-250-M/2 of 380 V, 110 Kw, at 2690 rpm. ■ FREON 22 ■ 1 Piston Compressor GRASSO RC 4.2.11of 532 cbm/hr. FREON refrigerant ■ 2 WITT GP 51 Electropumps of refrigerant for R-22 moving by electrical motors ASEA MBT 112 MC-4 of 380 V, 5,5 hp at 1500 rpm ■ 3 INTEGASA CF-32-20-2-112 condensers, 334 kg/each ■ 1 Condenser for a GRASSO compresor ■ 2 ITUR BC 21/M electropumps condensers, 15 m. of 7,5 bhp at 2890 rpm
Maquinaria de Cubierta
1 Electrical trawling winches CARRAL maker type MCM/8-4 driven by INDAR motor type N-450-L-A of 425 hp pulling capacity 12.700 kgs. At middle drum ■ 2 Generators INDAR of 335 Kw each moved by PTO through the reductor gear. ■ 2 Mooring winch CARRAL CB 2020 Pulling capacity 5000 Kgs. moved by electrical motor ASEA MH-200-L4 of 40hp at 1460 rpm ■ 1 Windlass CARRAL S/34-2 moved by electrical motor ALCONZA type KD-200-L-8/4 of 20 hp pulling cap. 8200 kgs ■ 2 ANCHOR made by Fundiciones de Asua ■ 1 Deck crane TOIMIL 825/S4 .
Parque de Pesca
Investments made in 2011 for about Euro 400,000 ■ 1 Filleting BAADER 181(new 1998) ■ 1 Baader 182 with a modern filleting line ( 2011) ■ 1 Filleting BAADER 190 ■ 1 Heading BAADER 424 ■ 1 Skinning BAADER 51 ■ 2 Skinning TRIO ■ 2 Washing Machine HR-2000 ■ 2 Squid Skinners ■ 1 Strapex ■ 1 Squid cleaners ■ 1 Ray skinning
