18/3/2013

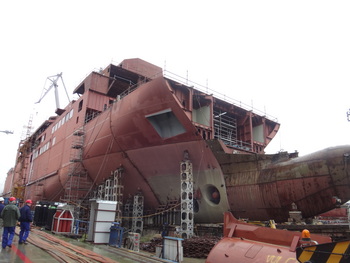

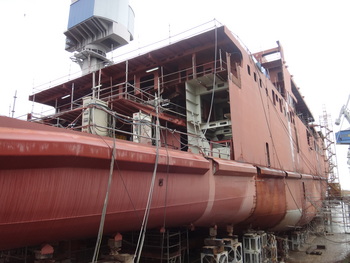

RESALE RO-PAX 1600 m de carril para coches/ 527 metros de carril para trailers (3,5 m de ancho)VESSEL DESIGNED TO OPERATE ON SHORT INTERNATIONAL VOYAGES , FOR WORLD WIDE OPERATIONS , AS PASSENGER SHIP AN DTO CARRY PASSENGERS, PRIVATE CARS , CARAVANS, LORRIES, AND MAFI TRAILERS , INCLUDING 20/40" CONTAINERS ON THEM (ONELAYER)
| Date of Built | :2014 |
| Shipyard | :Astilleros de Sevilla ( 2012) Factorias Vulcano (2014) |
| Country | :Spain |
| Classification | :Lloyd's Register |
| Cuota | :+100A1 Passenger and Vehicle Ferry , *IWS , Ice Class 1A , + LMC,UMS,NAV1,SCM,PCAC 22 |
| Accommodation | :Pass. Accmm. 1500 pax unberthed + Crew Acc. 64 cabins (1x64) |
| Holds details | :Trailers & cars cargo mix, 10 Reefer plugs (in deck 3) 527 lane meters trailer capacity on main deck 3 1600 lane meters car capaciity 219 lane meters multipurpose capacity on deck 5 609 lane meter |
Dimensions: |
|
| Length over all | :139 M |
| Length between p.p. | :123.64 M |
| Beam | :22 M |
| Draft | :5.9 M |
Bunkers: |
|
| G.O. Cap. | :110 M3 |
| F.O. Cap. | :390 M3 |
| L.O. Cap. | :40 M3 |
| F.W. Cap. | :170 M3 |
Tonnage: |
|
| DWT | :2300 |
Propulsion System: |
|
| Main engine | : 2 x Diesel WARTSILA |
| Type | :8L46F-CR |
| BHP | :26800 |
| RPM | :600 |
| Main engine details | :Total power of 2 x 10,000 kW at 600 rpm 2 x Electrohydraulic Rotatory Vane type Steering gears 2 x Full spade rudders with twisted leading edge and flap One pair of foldable fin stabilizers |
| Reduction gear | :2 x single input - single output with TPO RENK NDSL 28000 reduction - / PTO: 1.200 Kw |
| Shaft generator | :2 x Shaft Generators 1.200 kW 1.500 or 1.000 rpm |
| Propeller | :2 x CPP KAMEWA or similar Ø 4.500 mm, 4 blades. |
| Side Propeller | :2 x CPP propeller bow thruster 2.000 mm, 1.000 kW |
Aux Engines/Generators: |
| 3 Aux. engines WARTSILA 6L20 / 1.080 kW @ 1.000 r.p.m. /690 V /50 Hz 1 Emergency genset 476 kW / 595 KVA / 1.500 rpm / 400 V / 50 Hz |
Deck Equipment: |
| Hoistable ramp & Bow Door: 1 Tilting ramp / 16,0 m length + 2 flaps x 1 m, 2,4 m clear driving width / 2,5 m clear height 1 Stern ramp 9,8 m long / 13,0 m width/ 4,8 m clear height 1 Watertight Side door 3,2 x 2,5 m 2 Hoistable car decks, max 9º 2 Elec. Passanger lifts for 13 pax 2 Elec. Service lifts for 20 pax 1 Hydraulic Lifting platform 6 tons 2 Passenger entrance doors 2 Watertight guillotine pilot door 1 Helicopter Pickup/Landing area - Windlass: 2 x Combined mooring winch/anchor windlasses. 120 kN@15m/min 4 x electrycal auto tension mooring winches. Pulling force 120 kN@15m/min - Life Saving Equipment: 4 MES for abt 340 persons each 4 part. Enclosed 150 pax.motor lifeboats 1 FRC & 1 Normal rescue boat (6 p. each) Inflatable liferafts for 1.363 persons |
Additional Technical Details: |
| 2 x Heeling tanks + 1 reversible propeller pump (900 m³/h) Nine (9) decks - Free heights:: Depth Deck 3 : 8,30 m Main Deck (3) below hoisted platforms: 4,60 m Platform Deck(4) : 2,20 m Below lowered platform : 2,50 m - Pax public spaces : - Deck 5,6,7 : 2,3 0 m - Deck 8 : 2.10 m - Auxiliary Equipment: 1 Ballast water treatment system 2 Fresh water softeners 1 Hydrophore unit for Tech. Water System 6m³/h - 5 bar 1 Sewage biological plant: 70 m³/h - 21kg BOD5/day 1 Cold and Warm water system 2 Starting air compressors abt 18 m³/h - 30 bar 2 Service air compressors abt 12 m³/h - 8 bar 2 HFO purifiers abt 3.200 l/h each 1 HFO/ MDOpurifiers abt 3.200 l/h each 2 Oil purifiers 2 Exhaust gas boilers 800 Kw/unit - 1.200 kg/h @ 85% MCR 2 Oil fireed boiler 2.000 Kw/unit -3.000 kg/h - 10bar g. 5 SCR gas treatment units for main & auxiliary engines 1 Water fire extinguishing and deck wash system 1 Drencher system for cargo spaces fire |
