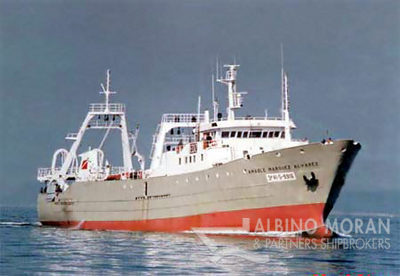

Nombre
AMABLE MARQUEZ ALVAREZ
Tipo
FACTORY FREEZING STERN TRAWLER
Año Construcción
1/01/87
Clase
Lloyd´s Register + 100 A1 Stern Trawler Deep Sea + LMC + RMC + ICE Class 1D
Tonelaje
1558.0 GT
Dimensiones
68.0 x 12.5 m
Acomodación
36 men + 2 in hospital
Capacidad de Bodega
1530.0 cbm
Motor Principal
2400.0 CV
Propulsor
CPP KAMEWA in nozzle
Sistema Frigorífico
45.0 ts/day ■ in 6 tunnels + 14 ts/day in 2 horizontal plate freezers ■ F-22 ■ 3 Screw compressors MYCOM F-160 LUD driven by motors of 150 hp each ■ 1 Piston compressor GRASSO RC-411 driven by motor of 100 hp
Maquinaria de Cubierta
CARRAL MCM-8-4 with 8 (eight) drums: 2 main drums (wire cap. 1800 m/28 mm each. ■ Pulling cap. 14 ts at middle drum and 120 m/min) with authomatic spooling gear system+ 2 sweep winches (wire cap. 400 m/28 mm) + 2 aux. winches for the pelagic net wings (200 m/28 mm) + 2 gilson winches (100 m/28 mm) + 2 warping ends. The set is driven by one electric motor INDAR of 500 hp. ■ 2 Aft manouvering codend winches of 5 ts at 18 m/min each
Parque de Pesca
1 Heading/gutting BAADER 424-A ■ 2 Heading/filleting BAADER 181 ■ 2 Skinning BAADER 51 ■ 1 Washing machine ■ 1 Sausage machine ■ 1 Washing-drying machine for fillets ■ 1 Glacing machine ■ 1 Desmoulding machine
