Nombre

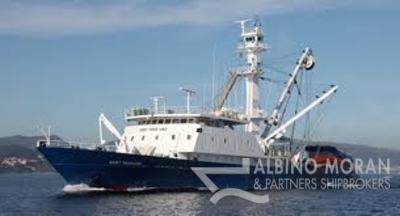

SANT YAGO DOS total loss
Tipo
ATUNERO CONGELADOR
Año Construcción
1991
Clase
Bureau Veritas Y 3/3E + Fishing Vessel, Deep, Sea RMC
Tonelaje
2109 GT / 633 NT
Dimensiones
79.8 x 13.5 M
Acomodación
32 men
Capacidad de Bodega
1940 CBM
Motor Principal
ECHEVARRIA-WARTSILA 4975 CV
Propulsor
Fixed pitch propeller NAVALIPS with 5 blades and 3780 mm diameter
Sistema Frigorífico
150 ts/day ■ in 18 brine tanks ■ Supplied by RAMON VIZCAINO, and made up of 3 compressors. MYCOM N 160 LU-E. Keeping the fish at -22ºC using ammonia as refrigerant. ■ 8 ITUR pumps with a capacity of 120 m3/h at 10 m.w.c. situated in the tunnel built between the two rows of tanks, provide service to the freezer tanks.
Maquinaria de Cubierta
All the deck fishing equipment has been supplied ■ by MARCO: ■ 1 Power block MARCO PB-78. Halador ■ 1 Main Purse Seiner Winch MARCO W ■ S-484 maquinilla principal ■ 1 Power block boom topping winch MARCO W-1925 TR. Maquinilla de amantillo para la plumA ■ 2 Power block boom vang winches MARCO W-3030. MAQUINILLAS de ostas ■ 1 Power block boom double winch MARCO W-1295 for skiff boat. Maquinilla maniobra subir panga ■ 1 Power block boom single winch MARCO W-1925 ■ 1 Stowing winch for power-block MARCO W-0850 ■ 1 Brailing boom topping winch MARCO W-0800. ■ 1 Brailing boom cargo winch MARCO W-1925 ■ 1 Brailing boom net head line winch MARCO W-3040 ■ 1 Auxiliary boom topping winch MARCO W-0800 ■ 1 Auxiliary boom cargo winch MARCO W-1925 ■ 2 Choker winches MARCO W-1925 ■ 1 Ring winch MARCO W-6456 ■ 1 Brailing winch MARCO W-0332. ■ Steel Skiff Boat: GUASCOR E-318 TA-SP of 600 bhp. ■ Aluminium Speed Boats: 2 YANMAR of 80 hp each.
